CEDAR AUDIO
MOHAVE TECHNOLOGY

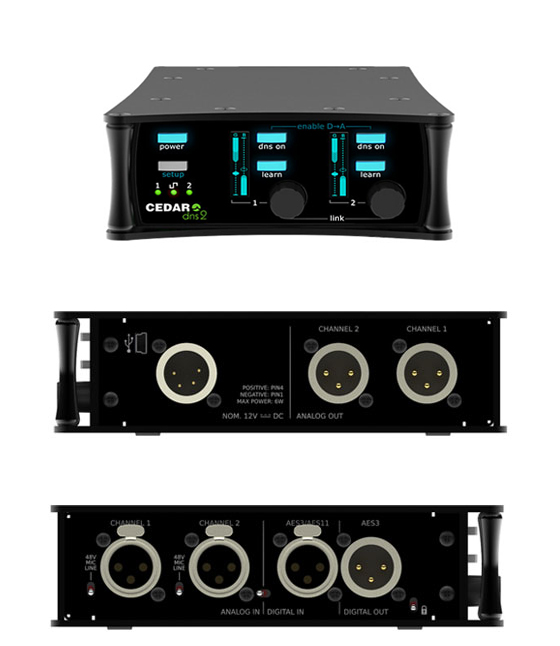

CEDAR DNS 2

Dialogue Noise Suppressor

Key features
  • Small, light and portable
  • A unique DNS algorithm with super-fast setup and control
  • Analogue (mic/line) and digital I/O
  • 12V power
RF Distribution
  • Number of channels: 2
  • Process type: CEDAR DNS with Learn
Analogue audio
  • Mic and line inputs: Balanced XLR3F
  • Line output: Balanced XLR3M
  • Output signal level: +4dBu nominal
  • Maximum output: +24dBu
  • AD/DA resolution: 24-bit linear PCM
  • Sample rate (internal sync): 48kHz
  • Sample rate (external sync): 40kHz - 100kHz
  • Phantom power on mic input: 48V ±4V, 10mA per mic
Digital audio
  • Input: AES3 or AES11 via balanced XLR3F
  • Sample rate sync range: 40kHz - 100kHz
  • Output: AES3 via balanced XLR3M
  • Sample rate (internal sync): 48kHz
  • Sample rate (external sync): Locked to input
Processing
  • Process resolution: 40-bit, floating-point
  • Latency: <0.1ms
Power
  • Input: 8-17.5VDC on XLR4M
Supplied adapter
  • Input: 85-250VAC, 50-60Hz
  • Output: 12V, 1A (max)
Dimensions
  • Size: 146mm x 110mm x 44mm
  • Weight: 540g
