CEDAR AUDIO
MOHAVE TECHNOLOGY

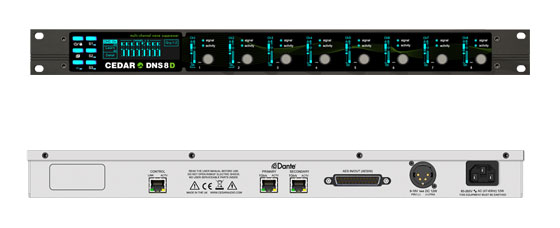

CEDAR DNS 8D

Multi-channel dialogue noise suppressor with Dante®

Key features
  • Eight channels of dialogue noise suppression
  • The latest DNS algorithm and user interface
  • A detailed mode ideal for permanent installations
  • 1U rackmount with 90V-250V universal PSU and 12VDC input
Audio specifications
  • Dante® and digital PCM (AES3 on DB25 AES59 pin-out) I/O
  • AES3 Latency of <10 samples (0.2ms at 44.1kHz)
  • Support for Dante's 'redundant' mode to help protect against network failure
  • Fail-safe audio bypass on AES audio connections
Physical specifications
  • Mains power: 90-260VAC; 50-60Hz auto-selecting
  • DC power: 12VDC on standard 4-pin connector
  • Size: 1U rackmount, 20cm depth
  • Weight: 3kg
DNS Control System
  • Browser-based remote control for laptops, tablets, and other devices
  • Independent of DAWs and not limited to specific operating systems
  • Works on almost any browser
  • Ethernet interface
