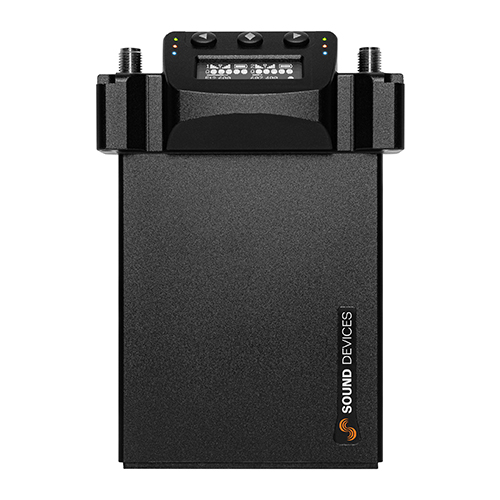

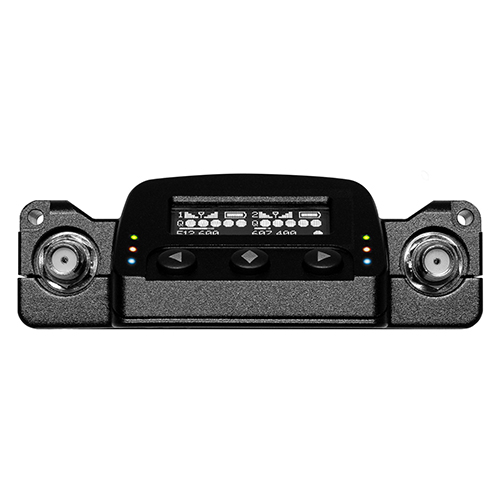

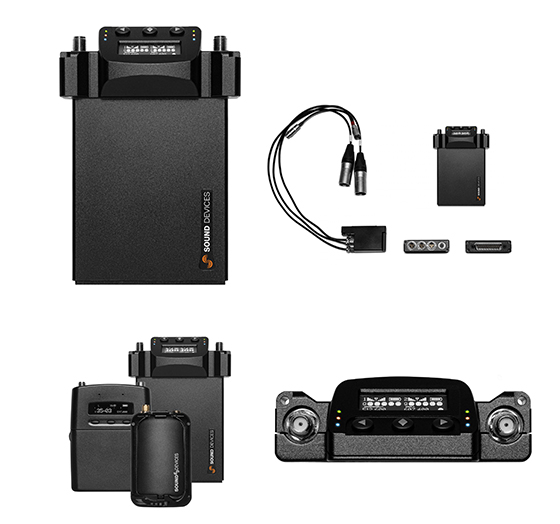

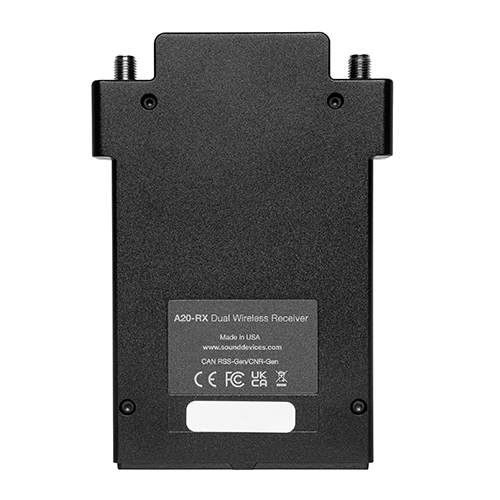

A20-RX

Two-Channel True Diversity Receiver

Overview

Experience ultimate flexibility as you find open spectrum away from the crowded UHF TV band. The A20-RX two channel true diversity receiver features industry-exclusive SpectraBand technology, which delivers a tuning range of 470 – 1525 MHz in a single unit. Superior low-loss, brick-wall SAW filters deliver excellent performance in noisy RF environments, while the AutoAssign feature makes frequency selection and setting quick and easy.

• SpectraBand Technology: compatible with the A20-Mini from 470 MHz – 1525 MHz and all tuning ranges of the A10-TX
• Advanced Digital True Diversity topology uses two complete RF receivers for each of the two channels, with four RF receivers in total
• SuperSlot compatible with the SL-2 and 8-Series mixer-recorders
• State-of-the-art 100% digital long-range modulation delivers the longest transmission distance of any digital system on the market
• GainForward Architecture compatible with the A20-Mini. Set the Mini’s gain levels via trim control (with an 8-Series) or at the A20-RX (for other mixers)
• Full 10 Hz – 20 kHz audio bandwidth; 100% digital RF modulation and transmission
• Excellent immunity from nearby IFB or camera hop transmitters without the need for external filters or extra cabling

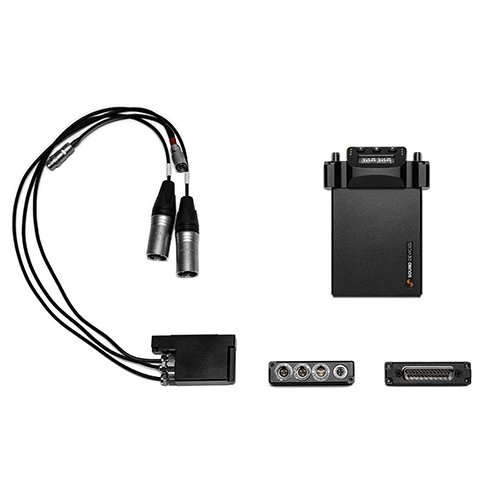

• Maximum connectivity: SuperSlot, XLR, and TA3 adapters, A-RXMON headphone amp, and A-15PIN two-channel AES Sony camera slot adapter
• Analog line-level or AES digital audio output
