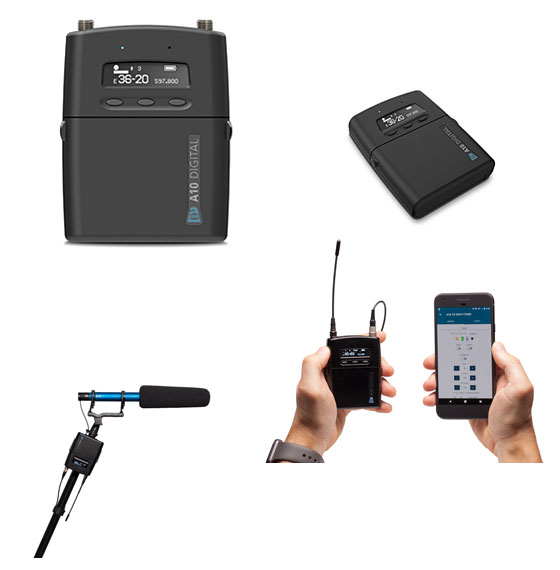

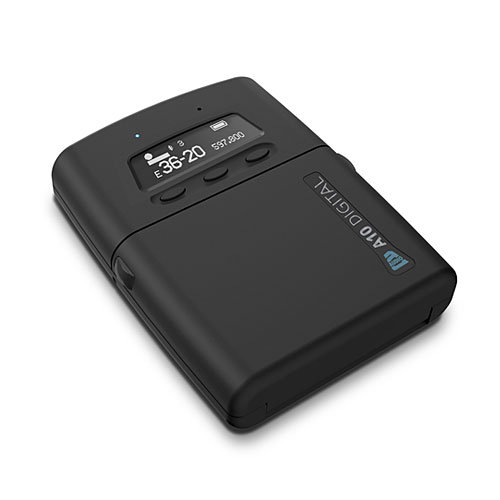

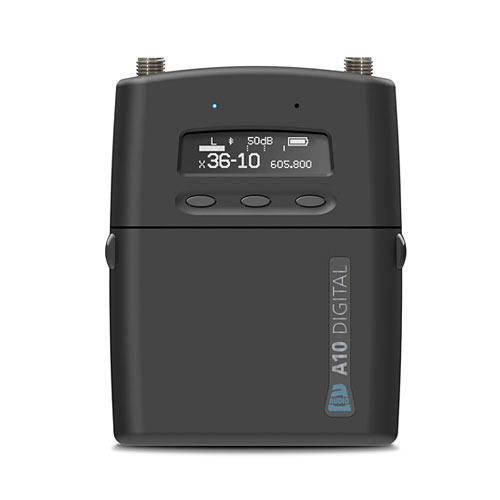

A10-TX

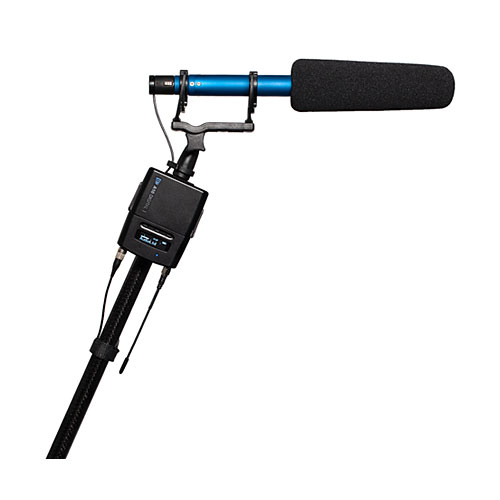

Digital Transmitter with Integrated Recorder for Boom and Lav

Overview

The A10-TX transmitter is the heart of the A10 Digital Wireless System. And the core of the A10-TX transmitter is its low-noise, high-dynamic-range analog input. It accepting signals from low-level lavalier microphones to balanced line-level. The 3-pin LEMO input offers analogue limiters, 5 volt bias for lavalier microphones, as well as 12 and 48 volt phantom power for balanced microphones.

A timecode-enabled recorder is integrated into the A10-TX. It records timecode-stamped files to removable microSD cards. After recording the proprietary .mic file requires conversion to WAV file using Mic2Wav utility software for macOS and Windows.

• Low-noise, studio-grade balanced input for microphones and line level inputs with analogue limiter and 48 V phantom power
• Integrated digital recorder with ultra-accurate timecode generator
• Records to removable microSD cards
• Simultaneous wireless transmission and recording

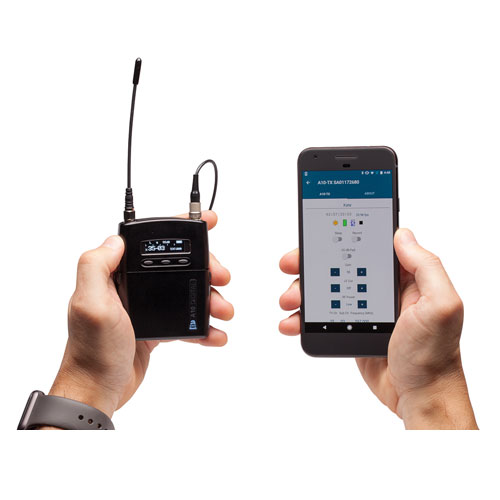

• Remote controllable over Bluetooth® using the A10-TX Remote app for Android and iOS

Specifications

• Operating Frequency Range :
• A10-TX-A (470–548 MHz)
• A10-TX-B (518–608 MHz)
• A10-TX-C (594–694 MHz)
• A10-TX-D (534-630 MHz)
