A10-RACK

Dante-Enabled Wireless Receiver Enclosure

Overview

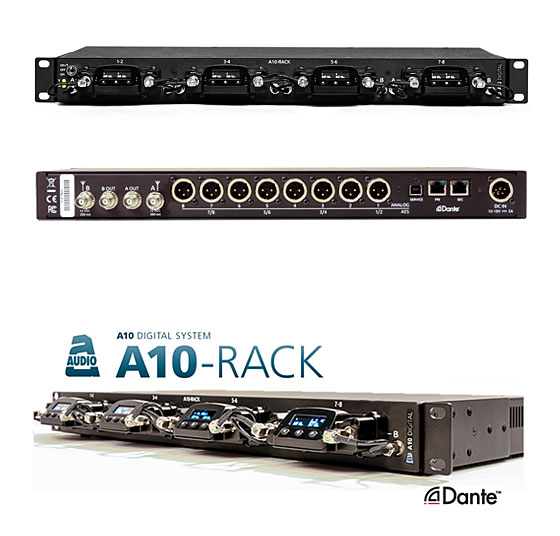

The A10-RACK offers convenient mounting, powering, RF, and audio connectivity for four uni- or SuperSlot wireless receivers in its 1 RU chassis. It is designed for dual-channel receivers from Audio Limited, including the A10-RX, plus slot receivers from Lectrosonics and Wisycom. The A10-RACK includes built-in antenna distribution with powering for active antennas. Up to eight channels of audio from single or dual-channel receivers appear on both its XLR outputs and over Dante™ audio-over-Ethernet.

Specifications

• Accepts up to four, two-channel wireless receivers (receivers sold separately)
• Audio output on analogue/AES3 and Dante
• Built-in power distribution
• Built-in antenna distribution with selectable power for active antennas
• Powered from 4-pin XLR input (10-18 VDC)
• USB port for firmware updates and serial access

RF Distribution

The A10-RACK has an integrated RF distribution amplifier. Its two RF inputs offer selectable 12 V powering for active antennas, plus loop-thru connections for another A10-RACK. A single pair of antennas can be used for up to 16 audio channels.

Powering

The A10-RACK is powered from standard 4-pin XLR, 10-18 VDC power supplies, such as Sound Devices XL-WP4 (shown right). Power supplies require 3 amps (minimum) for proper powering of the A10-RACK and connected slot receivers.
