QUE AUDIO
MOHAVE TECHNOLOGY

DA12

Single Ear Headworn Microphone

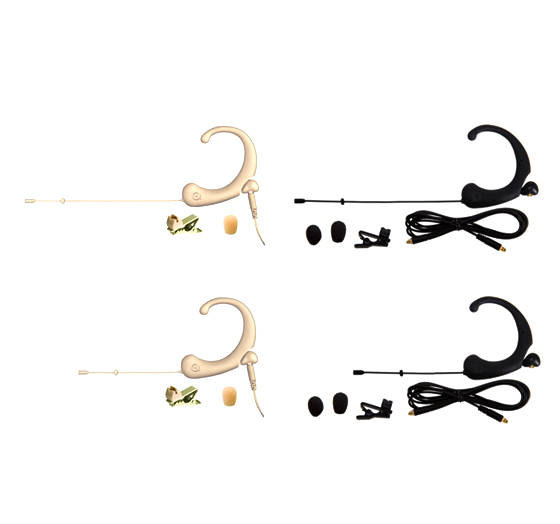

Products Available

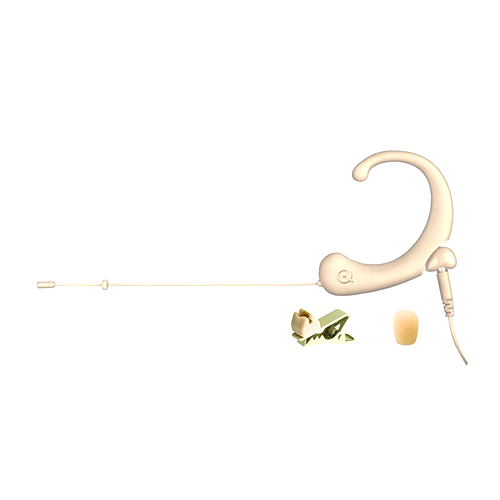

  • DA12 BE Single Ear Headworn Microphone, -45 dB Omni, Beige

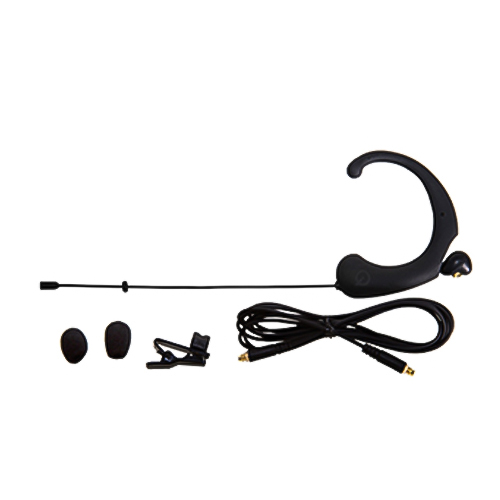

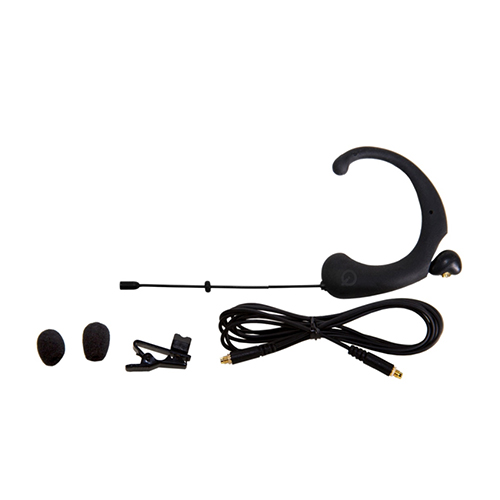

  • DA12 BL Single Ear Headworn Microphone, -45 dB Omni, Black

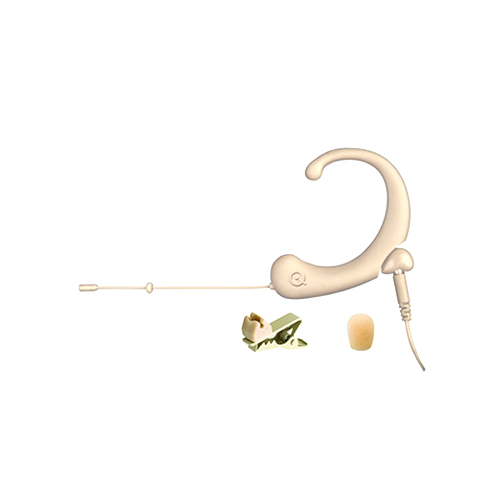

  • DA12 DE Single Ear Headworn Microphone, -45 dB Omni, Petite, Beige
  • DA12 DL Single Ear Headworn Microphone, -45 dB Omni, Petite, Black
Key Features
  • Element: Back Electret Condenser
  • Polar Pattern: Omnidirectional
  • Frequency Response: 20Hz – 20Khz
  • Sensitivity: -45±3dB
  • Output Impedance: 2Kohms ±30%
  • SPL Max: 140dB
  • Equivalent Noise Level (A-Weighted): 32dB
  • Dynamic Range: 123.5dB – 31dB = 92.5dB
  • Optimum Output Level: 123.5dB SPL @ 3%THD
  • Operating Voltage: 0.9V (optimal) – 5V (Maximum)
  • Cable: 1.4mm*1.8m
  • Weight: 5g (headset excluding cable and connector)
  • Mic Dimension: 3.5mm
  • Note: Specification and design subject to change without notice
