H
QUE AUDIO
MOHAVE TECHNOLOGY

DA04

Lavalier Microphone

Products Available

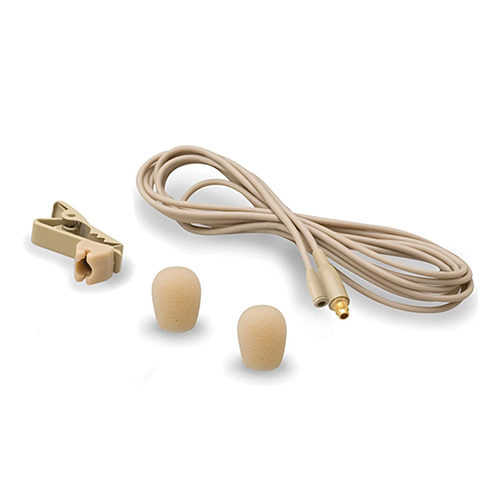

  • DA04 BE Lavalier microphone, -45dB Omni, Beige

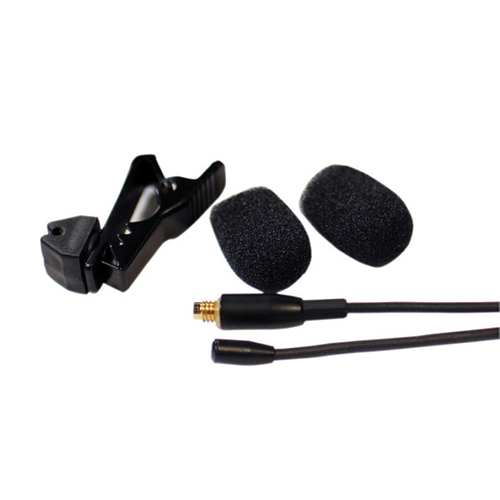

  • DA04 BL Lavalier microphone, -45dB Omni, Black
Key Features
  • Element: Back Electret Condenser
  • Polar Pattern: Omnidirectional
  • Frequency Response: 20Hz – 20Khz
  • Sensitivity: -45dB ±3dB
  • Output Impedance: 2Kohms ±30%
  • SPL Max: 140dB
  • Equivalent Noise Level (A-Weighted): 32dB
  • Dynamic Range: 123.5dB – 31dB = 92.5dB
  • Optimum Output Level: 123.5dB SPL @ 3%THD
  • Operating Voltage: 0.9V (optimal) – 5V (Maximum)
  • Cable: 1.4mm*1.8m
  • Weight: 4g (Mic inc. cable only)
  • Mic Dimension: 3.5mm
